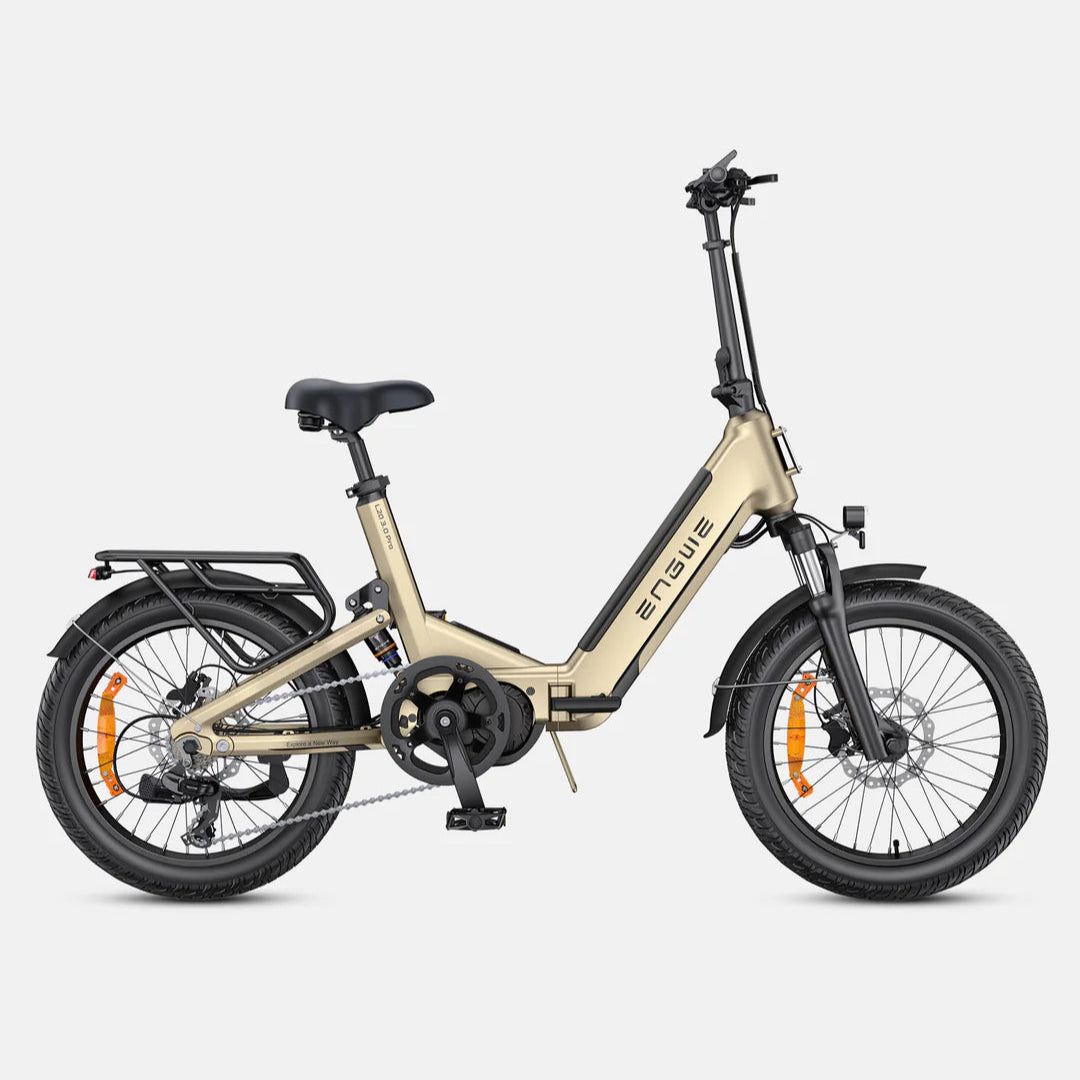

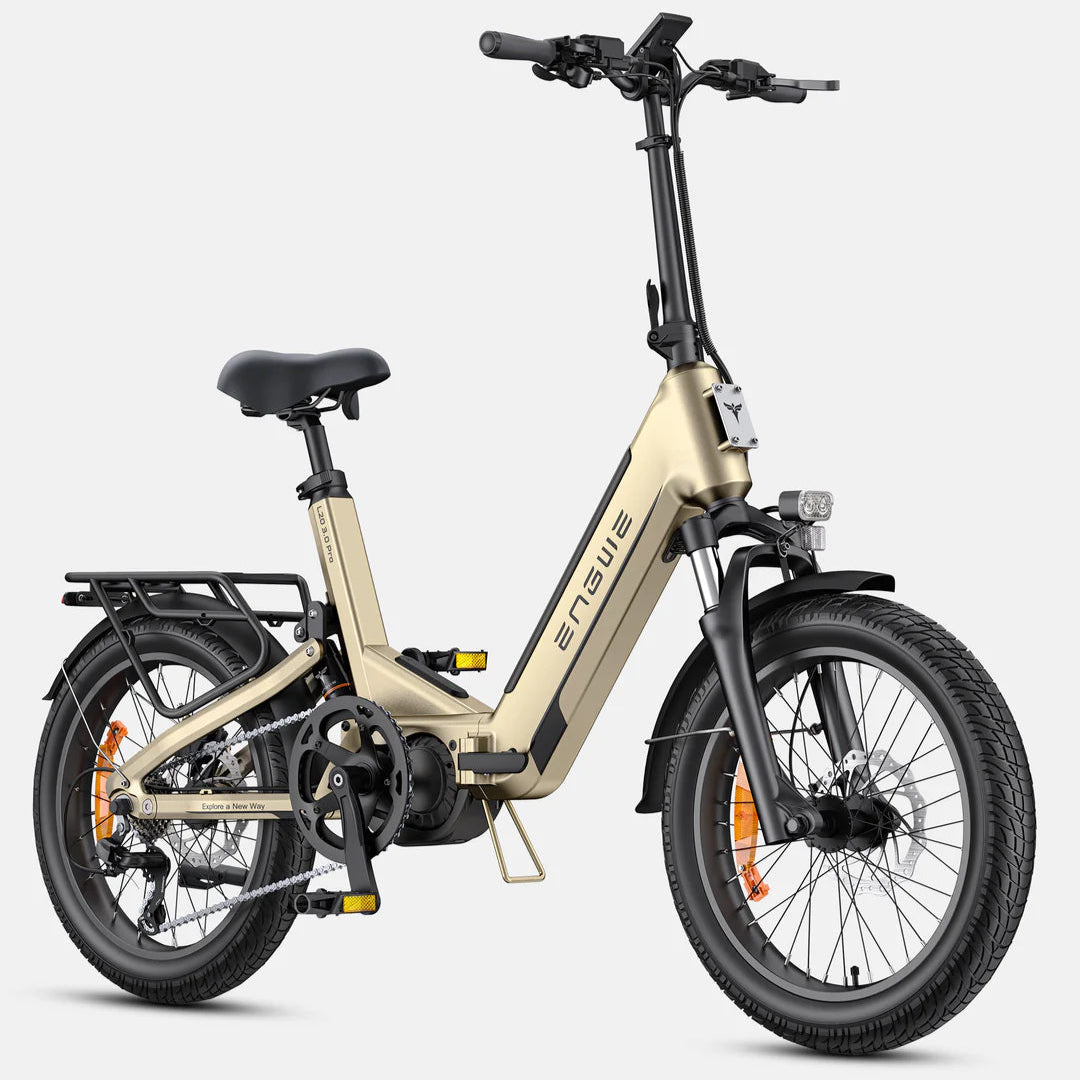

L20 3.0 Pro

£1,699.00

Speed 25km/h

Battery 15ah

Range 160km

Motor 250W

Speed 25km/h

Battery 15ah

Range 160km

Motor 250W

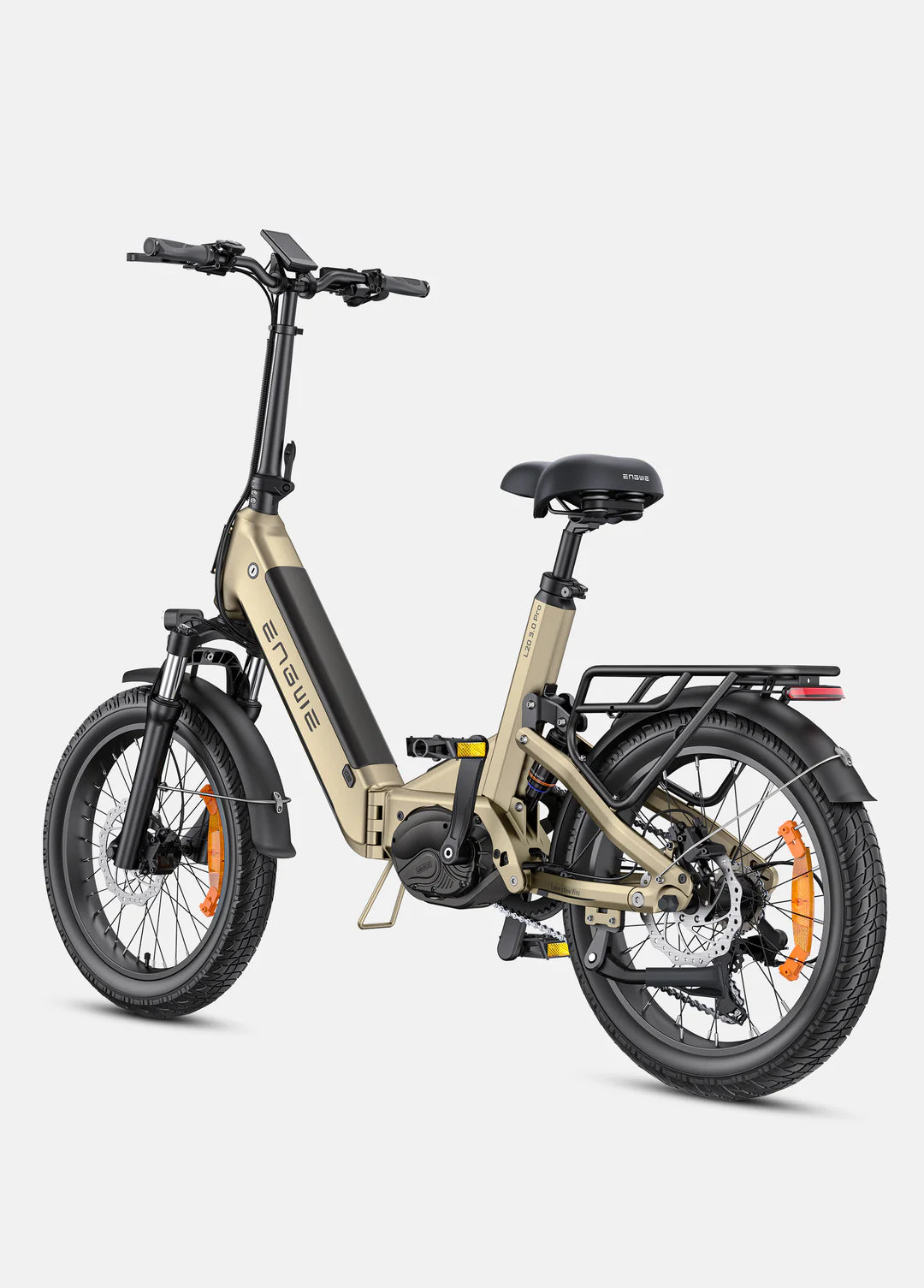

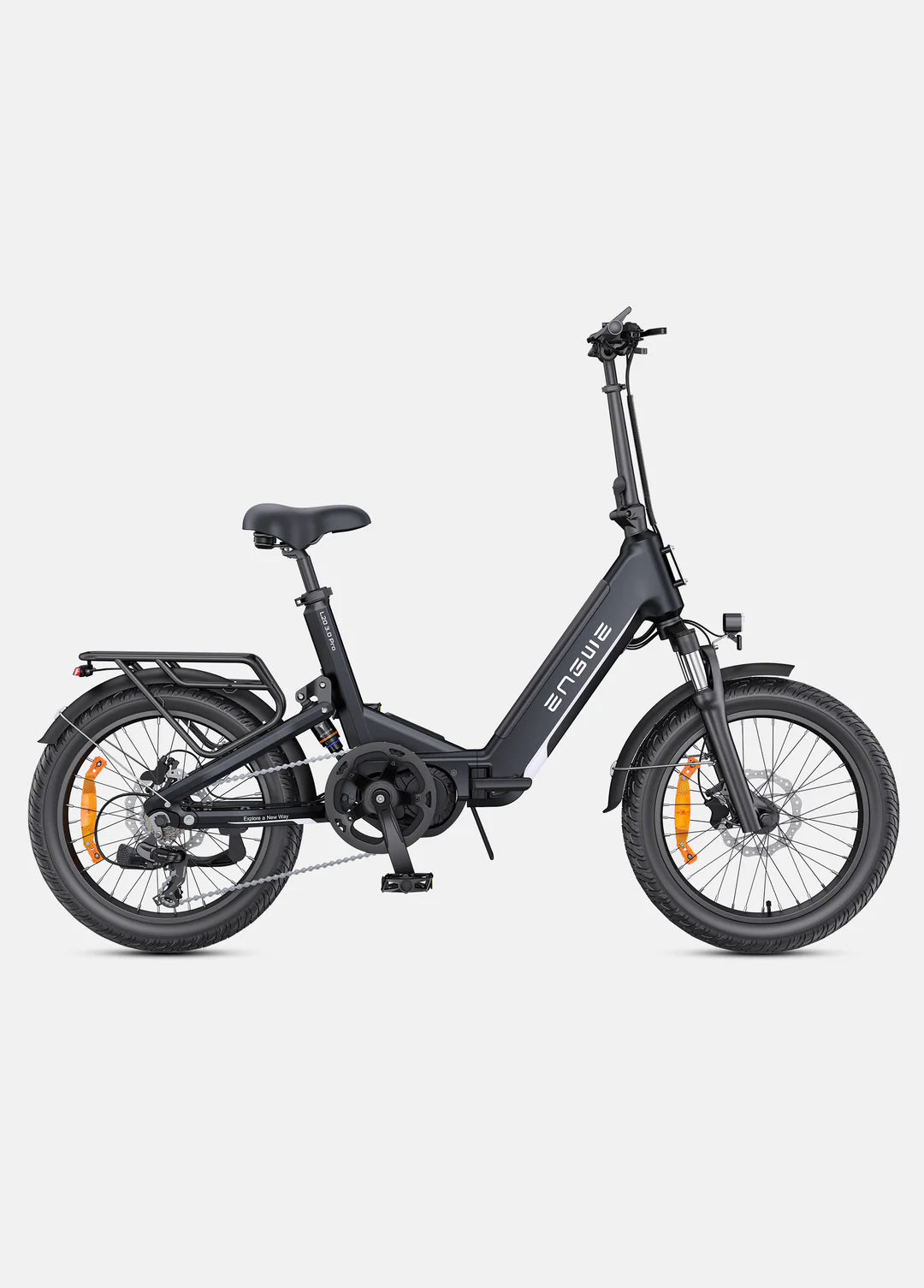

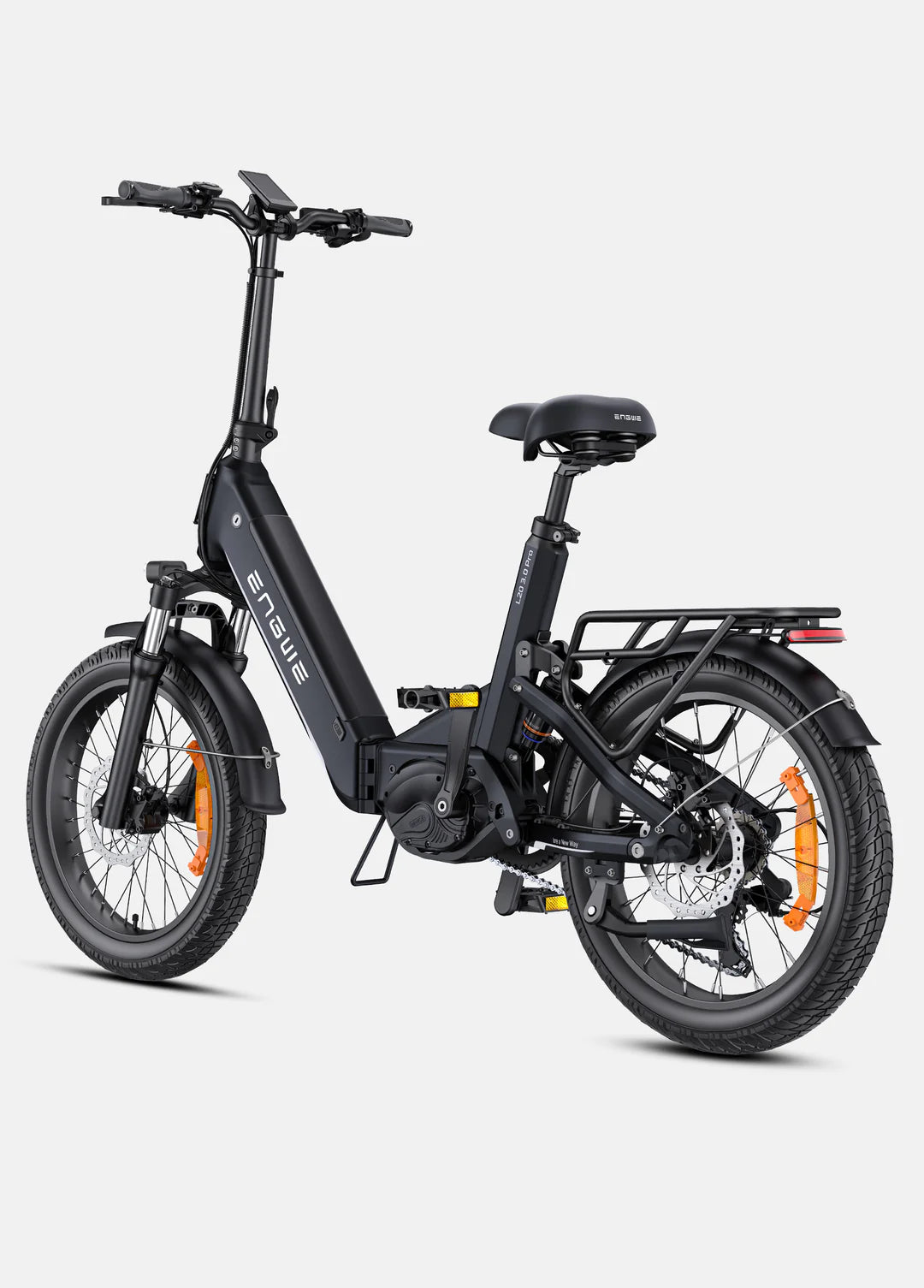

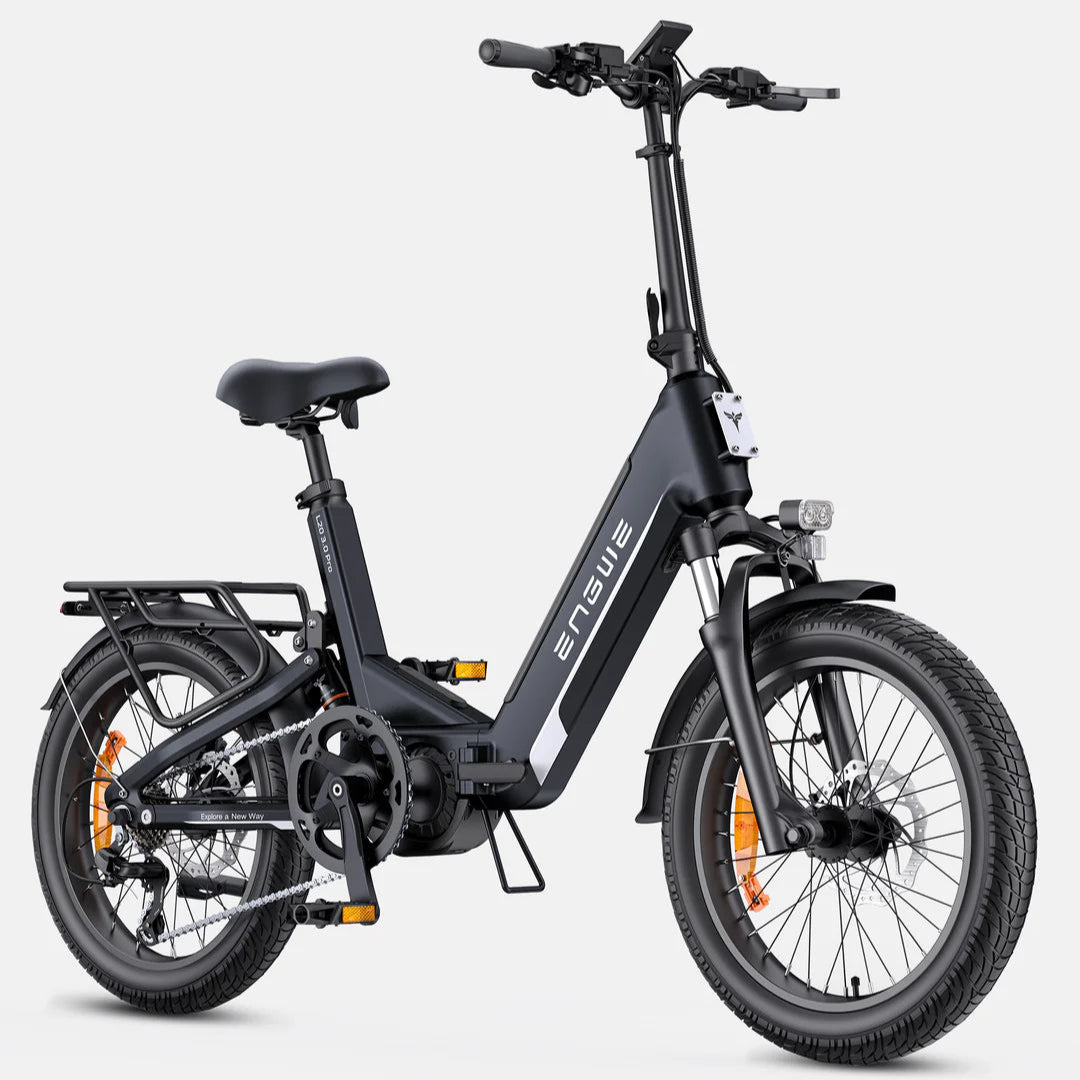

250W 100Nm Mid-drive Motor Full Suspension Compact E-bike

Color Black (flame color)

Free delivery and shipping

Secure online payment

L20 3.0 Pro

£1,699.00

Black (flame color)

Specification

General Info

Model: L20 3.0 Pro
Max Load Capacity: 150 kg (330 lbs)
Ride Height: 5'1"–6'3" (155 cm–190 cm)
Certification: CE (EN15194)
Pedal Assist: 5 Levels

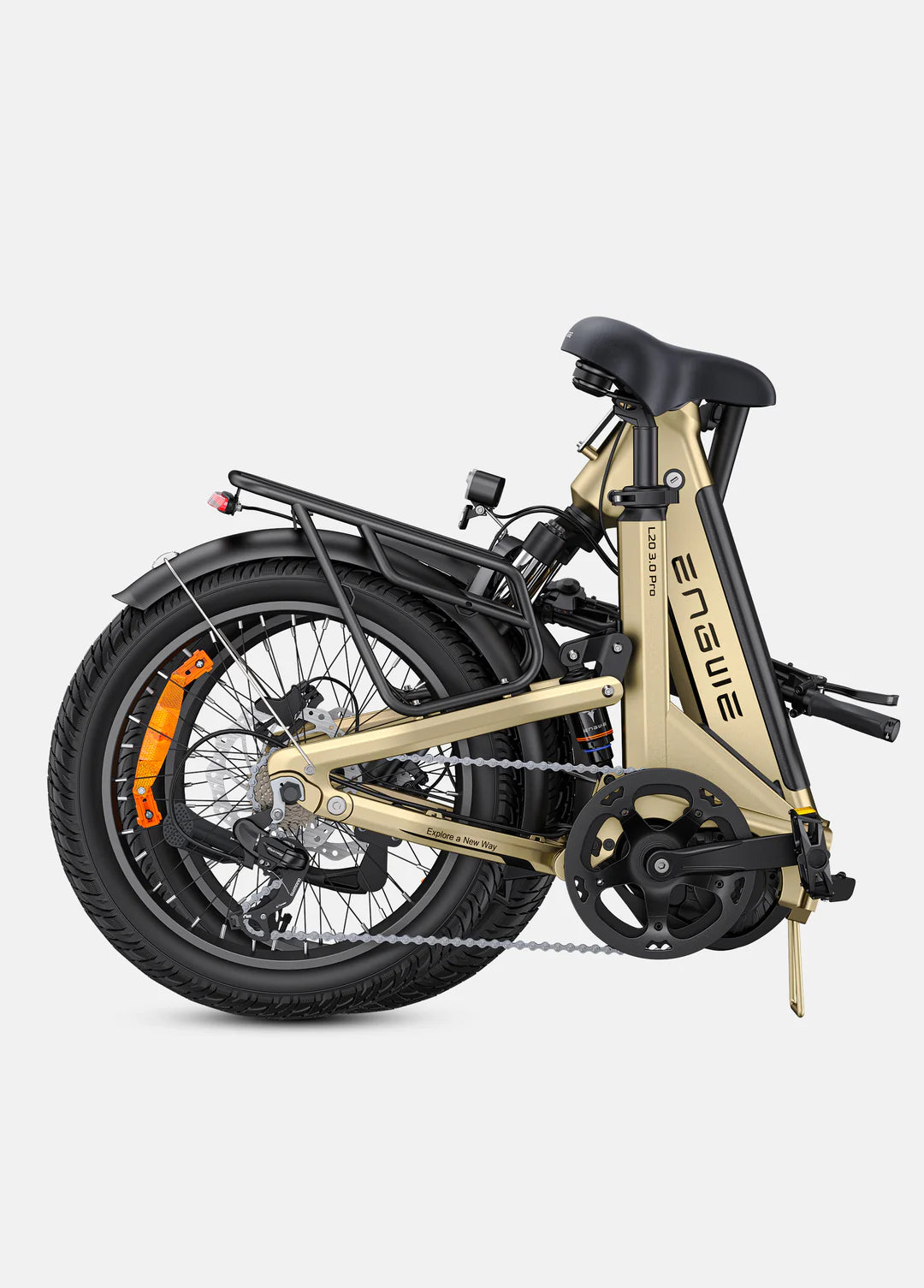

Foldable: Yes

Range & Waterproof Ratings

Lab Tested Range: 160 km (Fully Charged)
Real-World Range:
PAS 1:140 km
PAS 3: 110 km
PAS 5: 96km
Waterproof Ratings:
Wiring: IPX7
Display & Lights: IPX6
Motor & Controller: IPX5
Battery Box: IPX4

Terrain Suitability

Tarmac Roads & Bicycle Routes
Gravel-Paved Paths
Sandy Beaches & Grass
Country Roads & Paved Trails

Weight

Bike Weight: 32.8 kg (72.3 lbs)
Gross Weight: Approx. 42 kg (92.6 lbs)

Frameset

Frame Material: 6061 Aluminum Alloy, Internal Battery, Step-Through Design
Frame Style: Compact, Full Suspension
Fork: Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum
Rear Suspension: 30mm Travel

Wheel Set

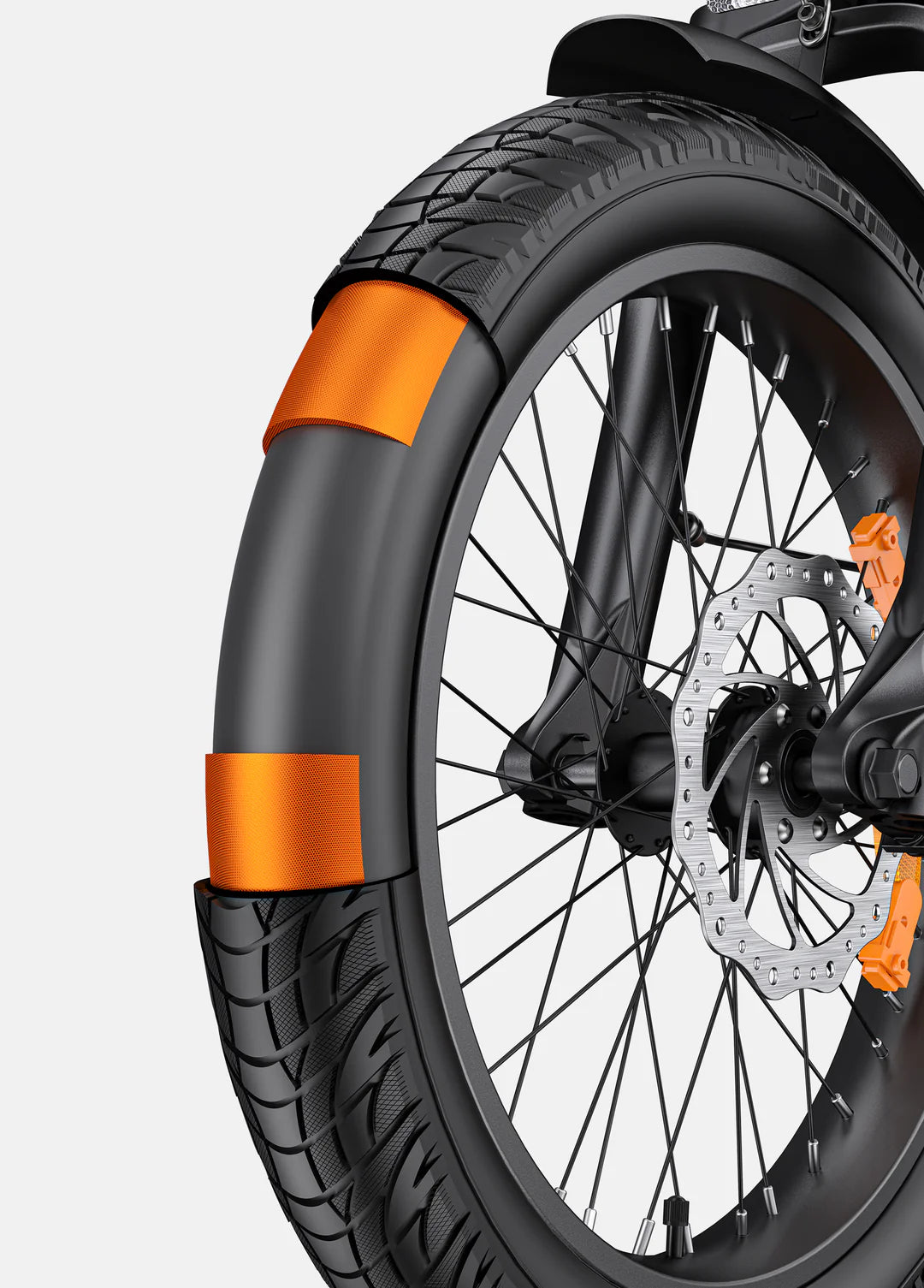

Tires: 20" × 3.0" Urban Hybrid Tires
Puncture Protection: 3mm Anti-Puncture Layer
Wheels: 20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black

E-Bike System

Motor: Mivice X700 Mid-Drive, 48V
Max Torque: 100 Nm
IOT: ENGWE IOT Module with GPS, 4G & Bluetooth
Assist System: Torque Sensor
Battery: 48V 15Ah (720Wh), Samsung 21700 Cells with BMS

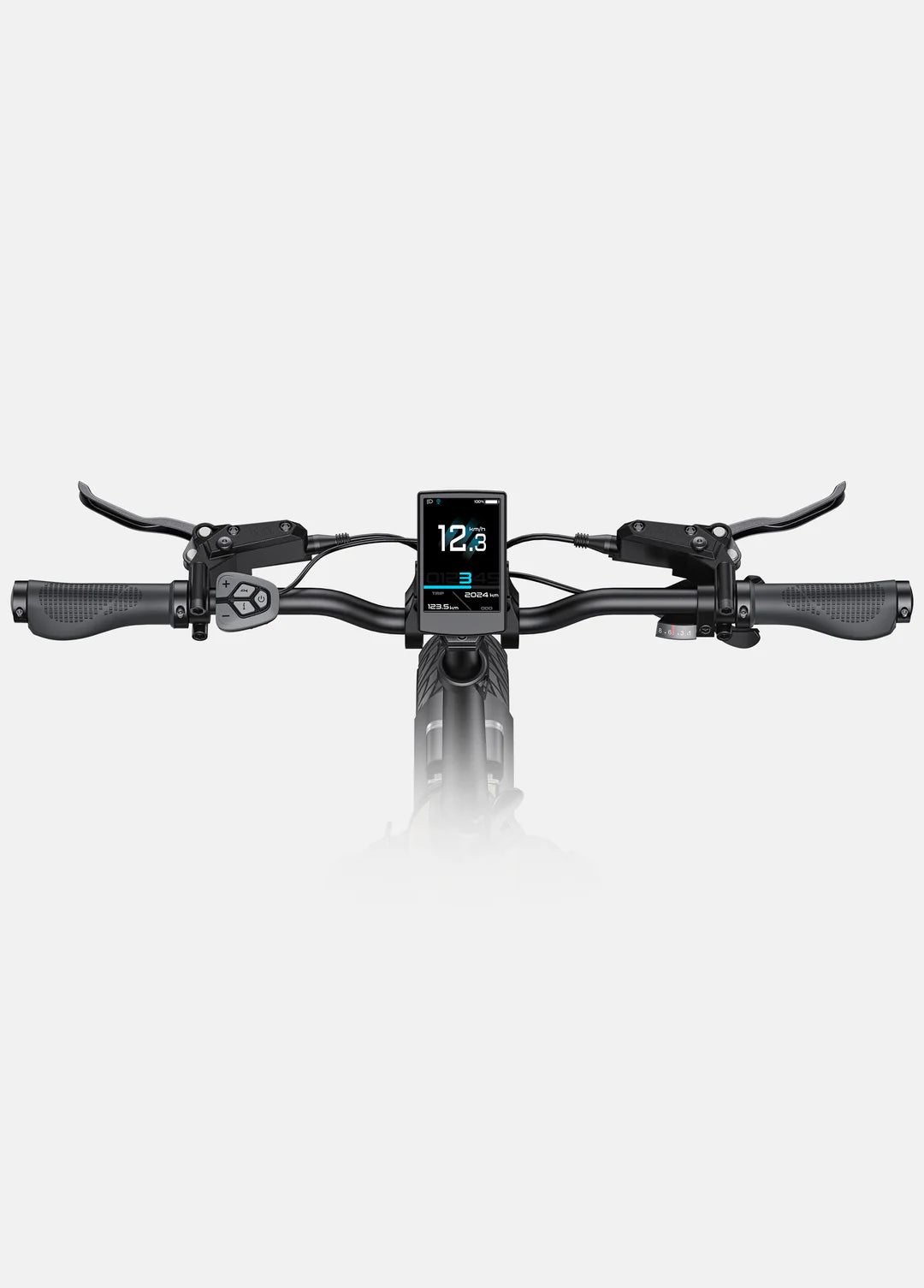

Display: 3.5" LCD Color Display, ENGWE-Designed, Mid-Position
ENGWE App: App Control Available
Charger: 54.6V 8A Output
Front Light: 30 Lux with Integrated E-Horn

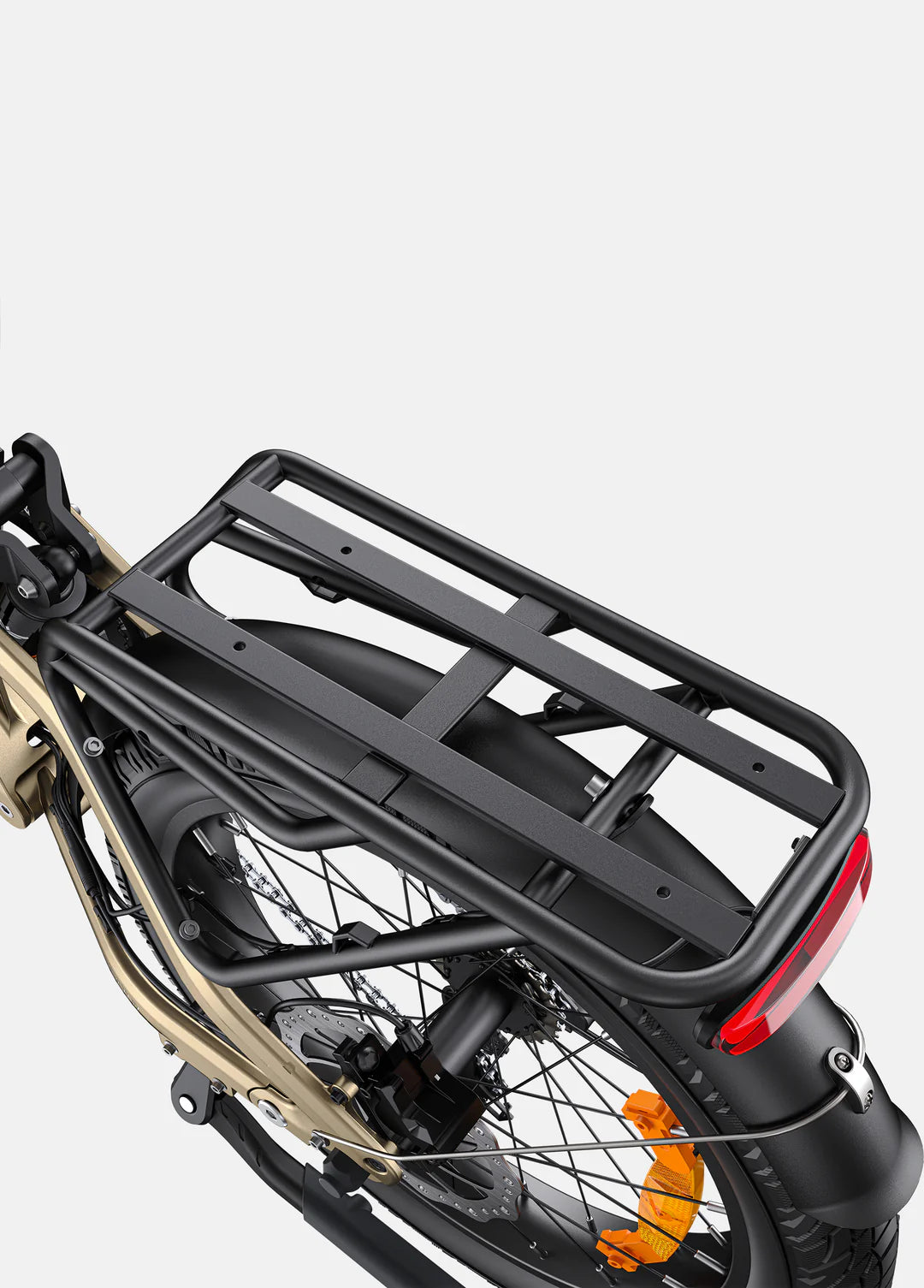

Rear Light: Automatically brightens When Braking or Shaking

Brakes

Brake Type: Hydraulic, Dual-Piston

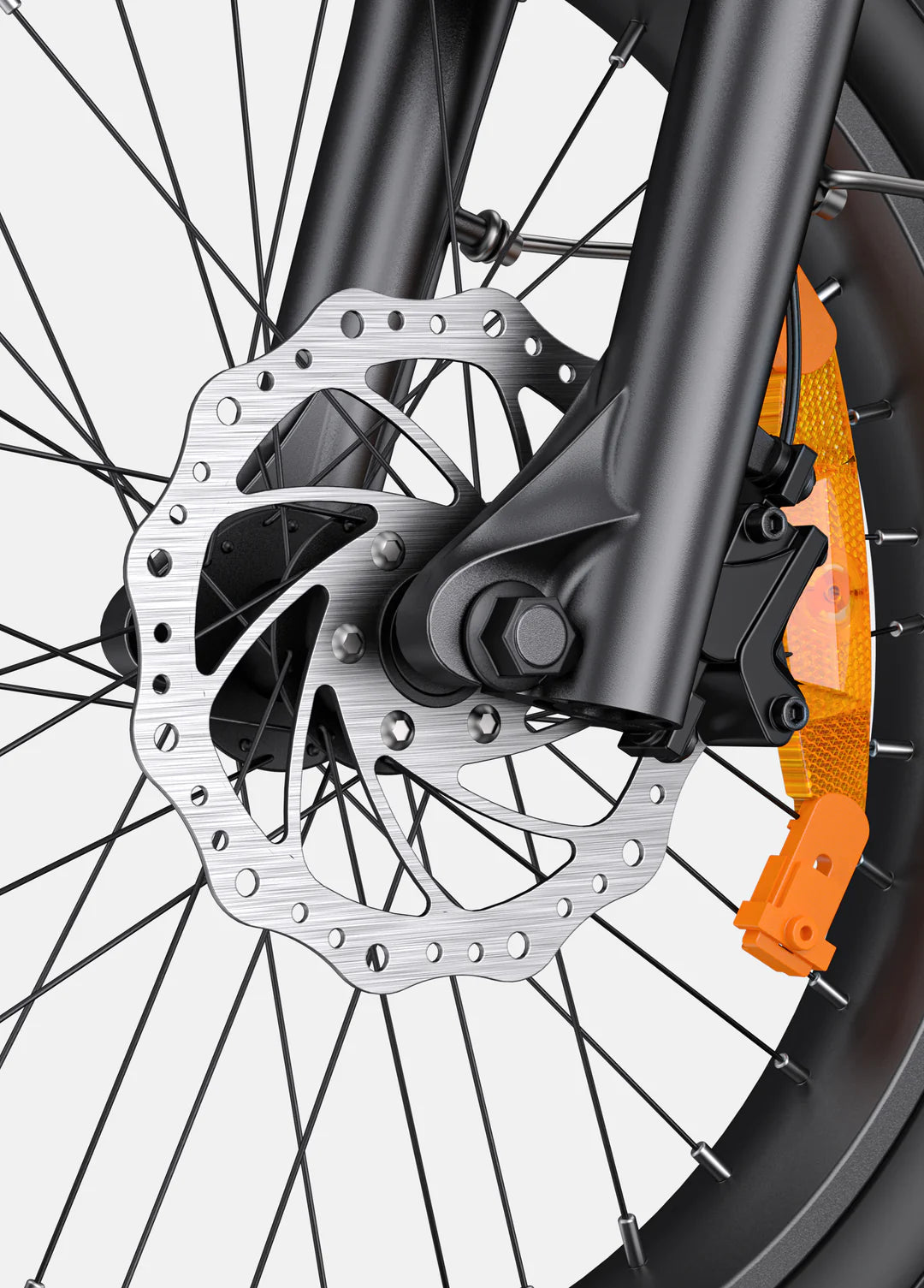

Disc Rotor: 180mm Front & Rear

Drivetrain

Chain: KMC E8S Anti-Rust, 112 Links
Chainring: 48T
Crank: 170mm

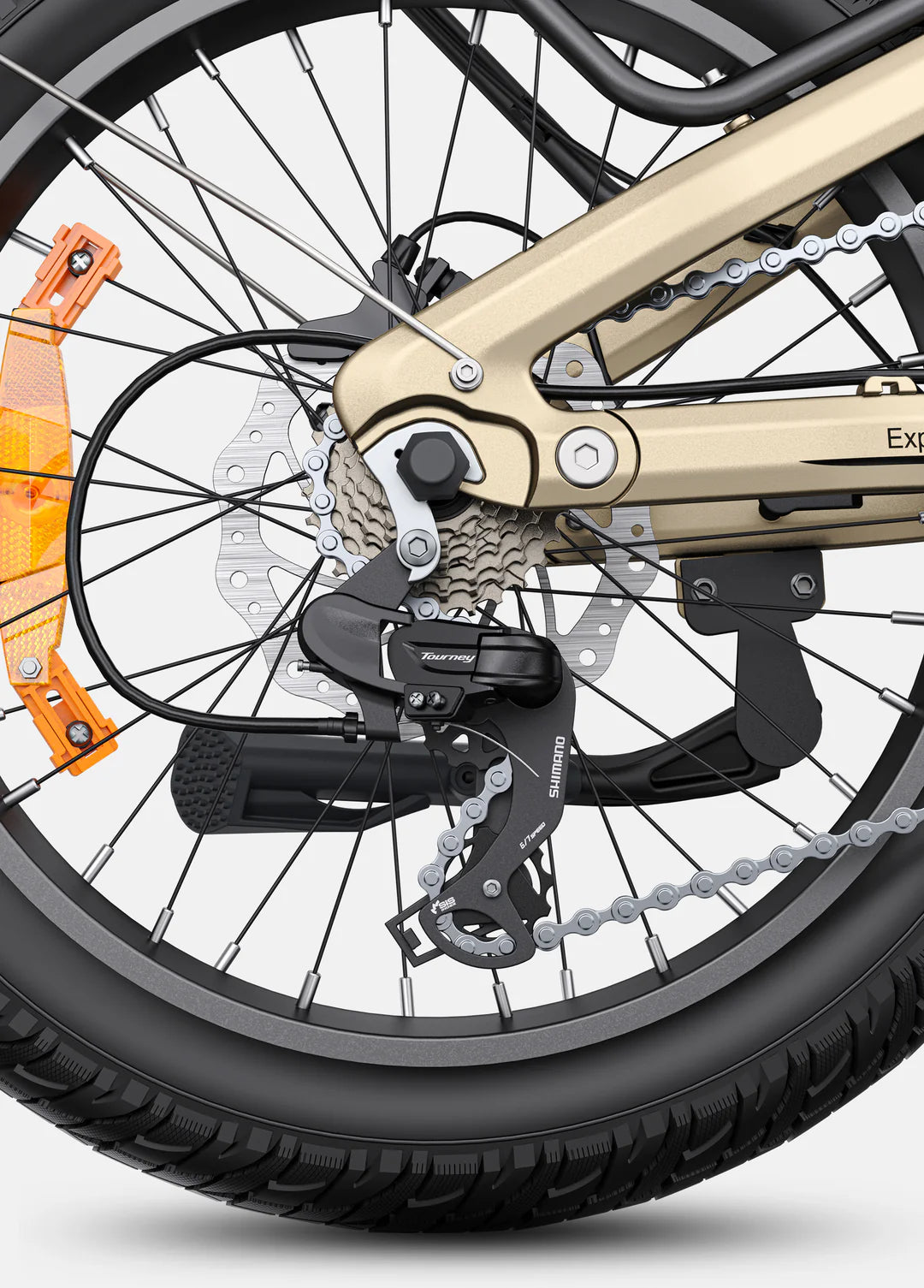

Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed
Shifter: Shimano SL-M315-7R
Cassette: 7-Speed, 14T-28T
Pedals: Boron Steel, Non-Foldable

Cockpit

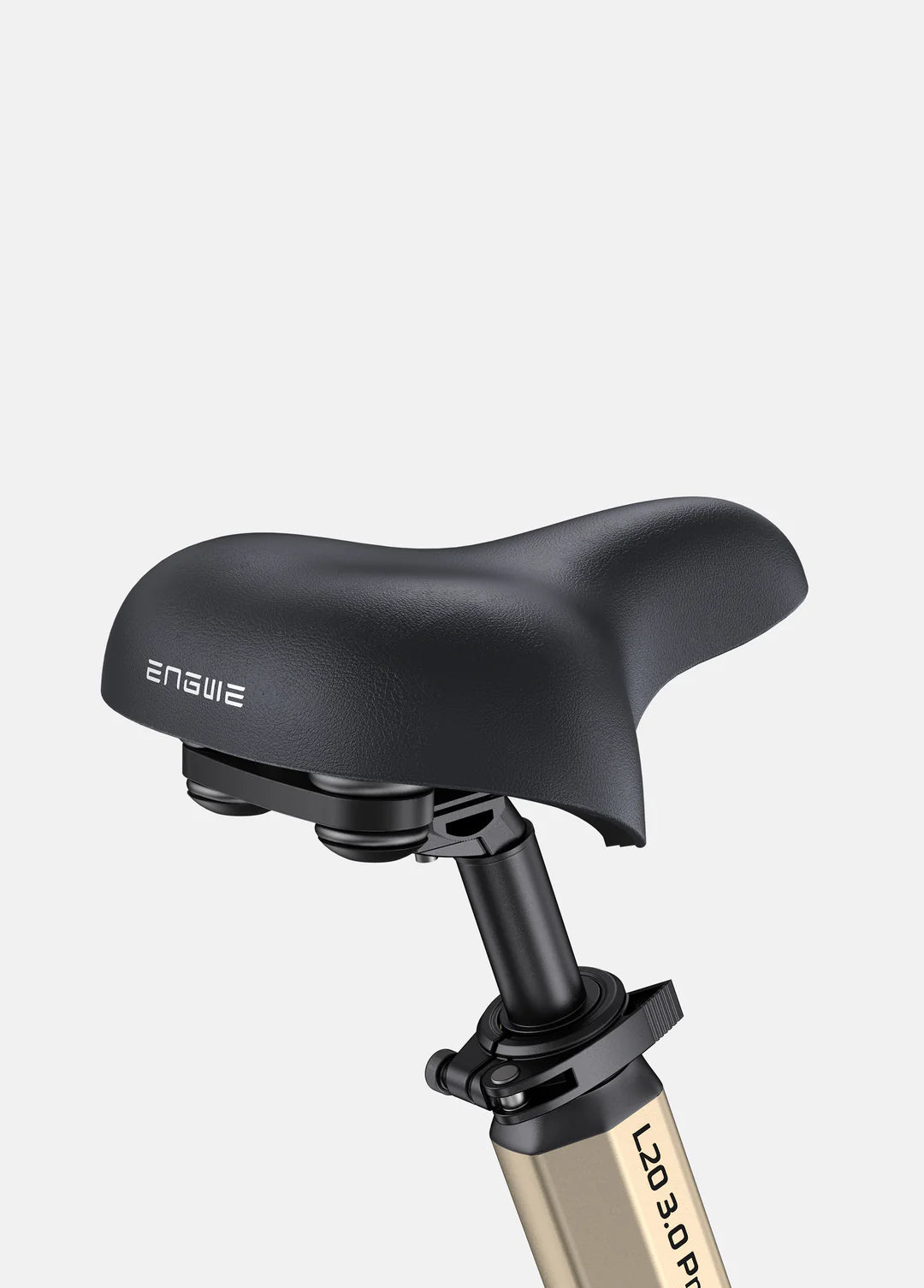

Saddle: ENGWE Soft Saddle
Seat Post: 10-Level Adjustable
Handlebars: 680mm Width
Stem: Foldable
Seat Clamp: Quick-Release

Please Note:

There may be slight variations between measured and actual data.

Size

Unfolded Dimensions

Ride Height: 5'1" – 6'3" (155 cm – 190 cm)
Max Load Capacity: 150 kg (330 lbs)
Package Dimensions (L×W×H): 144 × 27 × 64 cm

Bike Measurements

A – Handlebar Height: 110.2 cm
B – Total Length: 172.0 cm
C – Reach: 51.2 cm
D – Standover Height: 38.0 cm
E – Wheelbase: 116.5 cm
F – Minimum Saddle Height: 82.0 cm
G – Maximum Saddle Height: 102.0 cm

Please Note:

There may be a difference of 0–5 cm between measured and actual data.
